CEMENT/ FLY ASH SILO
CONCRETE BATCHING

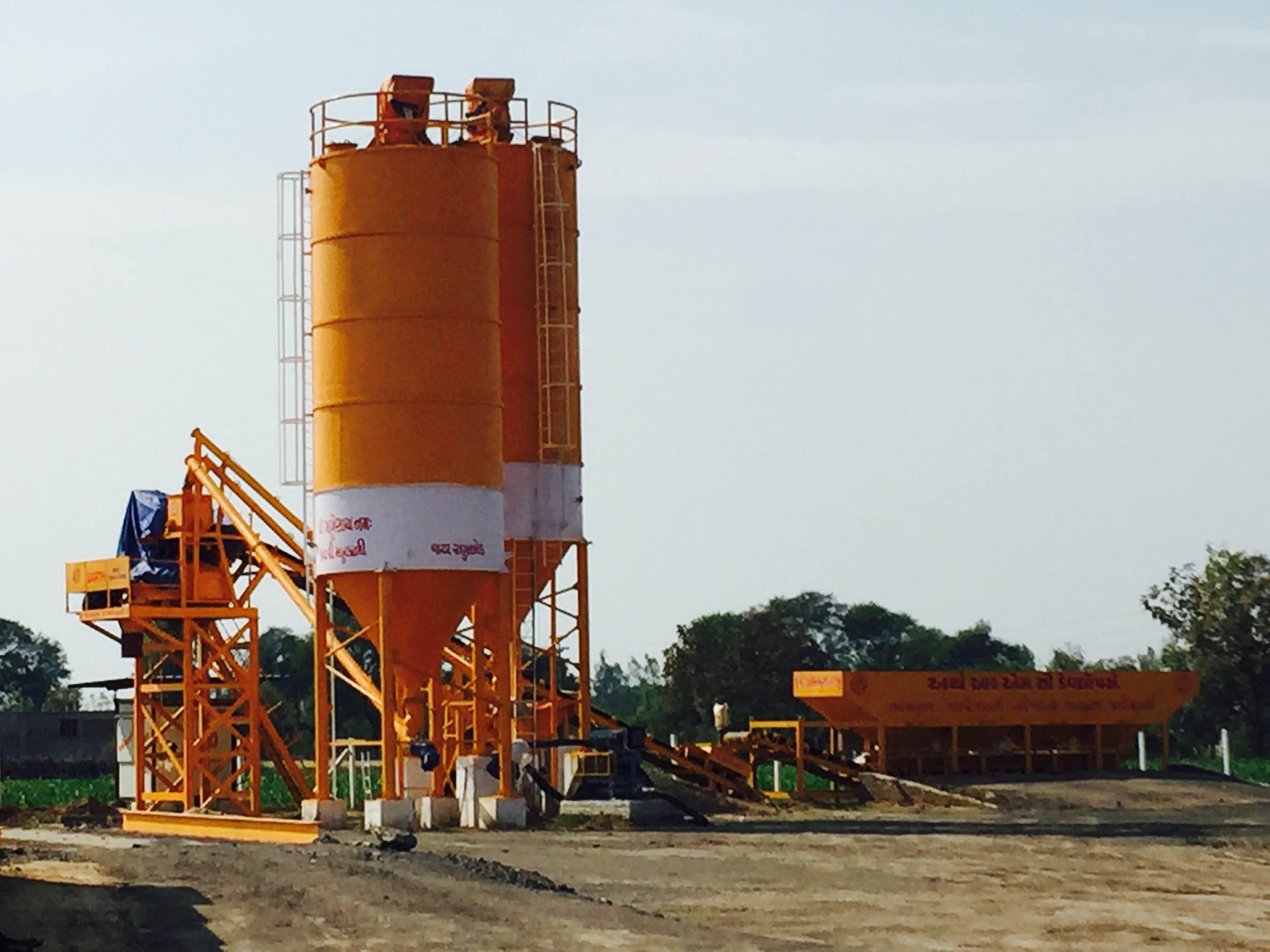

CEMENT/ FLY ASH SILO

An Indian-make Indian Standard Cement and Fly Ash Silo is a heavy-duty vertical steel storage tank designed to hold bulk cement, fly ash, micro-silica, or slag powder at concrete batching plants or brick manufacturing facilities. Fabricated in compliance with Bureau of Indian Standards (BIS) codes (such as IS:2825 for pressure vessels/structural safety) and optimized for high-capacity batching plants, these silos protect moisture-sensitive powders from humidity, rain, and external contamination. Standard capacities: 50 Ton, 100 Ton, and 150+ Ton.

verified IS:2825 Compliant storage 50–150+ Ton history 20+ Year Lifespan public Exported to 25 Countries

CAPACITY

50 – 150+ Ton

MATERIAL

Mild Steel (IS:2062)

STRUCTURE

Welded / Bolted

Request a Quote arrow_forward download Download Brochure
support_agent Need a custom capacity or configuration? Talk to our engineers →
Overview
Technical Specifications
Features & Benefits
Applications
FAQs

Heavy‑Duty Powder Storage for Concrete Batching

An Indian-make Indian Standard Cement and Fly Ash Silo is a heavy-duty vertical steel storage tank designed to hold bulk cement, fly ash, micro-silica, or slag powder at concrete batching plants or brick manufacturing facilities. Fabricated in compliance with Bureau of Indian Standards (BIS) codes (such as IS:2825 for pressure vessels/structural safety) and optimized for high-capacity batching plants, these silos protect moisture-sensitive powders from humidity, rain, and external contamination.

The Atlas CEMENT/ FLY ASH SILO is engineered for durability and reliable material flow. With a welded or bolted construction, heavy-duty supporting legs, and a comprehensive suite of safety accessories – including top dust filters, pressure relief valves, fluidization nozzles, and level indicators – our silos ensure safe pneumatic filling and consistent discharge for batching plant operations.

settings Core Technical Specifications

ParameterStandard Industrial Values (Indian Market)
Storage Capacity50 Ton, 100 Ton, to 150+ Ton (50T & 100T are the standard defaults)
Material of ConstructionStructural Grade Mild Steel (MS) Plates (IS:2062 Grade)
Shell Plate Thickness5 mm to 8 mm (thicker at the bottom cone to support the immense weight)
Silo Structure TypeWelded (Single-piece for up to 100T) or Bolted (Sectional for easy transport)
Discharge SystemCone bottom with a manual/pneumatic butterfly valve and screw conveyor
Supporting LegsHeavy-duty structural H-beams / pipe legs with cross-bracing

inventory_2 Quick Facts

BrandAtlas Engineering
OriginAhmedabad, India
Warranty18 Months
Delivery6–10 Weeks
StandardIS:2825, BIS
Capacity50–150+ Ton
SpecificationDetails
Storage Capacity50 Ton / 100 Ton / 150+ Ton (custom available)
Material of ConstructionStructural Grade Mild Steel (IS:2062)
Shell Plate Thickness5 mm – 8 mm (thicker at bottom cone)
Silo Structure TypeWelded (up to 100T) / Bolted (sectional for transport)
Discharge SystemCone bottom with manual/pneumatic butterfly valve + screw conveyor
Supporting LegsHeavy-duty H-beams / pipe legs with cross-bracing
Top Dust FilterPulse-jet baghouse / pneumatic vent filter
Pressure Relief ValveSpring-loaded safety valve on silo roof
Fluidization / AerationCompressed air nozzles along bottom cone
Level IndicatorsMax & Min level (paddle / tuning fork sensors)
ComplianceIS:2825, BIS, MORT&H
Net Weight6,000–25,000 kg (model dependent)
filter_alt

Top Dust Filter (Silo Vent Filter)

A mandatory pneumatic or mechanical pulse-jet baghouse filter mounted on the silo roof. When bulk tanker trucks pump cement inside using high-pressure air, the filter traps micro-powder while venting clean air to prevent roof rupture.

safety

Pressure Relief Valve (PRV)

A spring-loaded safety valve mounted on the silo roof. If a bulk truck over-pressurizes the tank during pneumatic filling, the PRV instantly opens to bleed off excess pressure safely.

air

Fluidization Nozzles / Aeration Pads

Cement and fly ash pack down tightly over time and form a "bridge" or vacuum "rathole" above the discharge mouth. Compressed air nozzles installed along the bottom cone fluidize the powder and maintain smooth downward gravity flow.

notification_important

Level Indicators (Max & Min)

Max Level Indicator sounds an alarm to warn the tanker operator to stop pumping before overflow. Min Level Indicator alerts the batching plant cabin operator that raw materials are running dangerously low.

conveyor_belt

Screw Conveyor System

A horizontal or inclined motorized auger pipe attached to the bottom hopper cone meters out the raw powder and feeds it cleanly up into the cement weigh hopper of the concrete batching plant.

support_agent

24/7 Technical Support

On‑site commissioning, maintenance training, and spare parts support across 25 countries.

factory

Concrete Batching Plants

Bulk storage of cement, fly ash, and micro-silica for RMC plants, highway projects, and commercial batching operations.

construction

Brick & Block Manufacturing

Storage of fly ash and cement for manufacturing fly ash bricks, concrete blocks, and pavers.

bridges

Infrastructure Projects

On‑site cement storage for bridges, dams, metro rail, and tunnel construction projects.

oil_barrel

Mining & Industrial Applications

Storage of slag powder, micro-silica, and other powdered materials for industrial processing.

What are the standard capacities available?expand_more

Standard capacities are 50 Ton, 100 Ton, and 150+ Ton. Custom capacities are available upon request for specific project requirements.

What materials can be stored in this silo?expand_more

The silo is designed for bulk cement, fly ash, micro-silica, slag powder, and other dry powdered materials used in concrete batching and brick manufacturing.

What is the difference between welded and bolted silos?expand_more

Welded silos are single‑piece construction, ideal for up to 100T capacities. Bolted silos are sectional, allowing for easy transport and assembly at remote project sites.

What safety accessories are included?expand_more

Standard accessories include a top dust filter (pulse‑jet baghouse), pressure relief valve (PRV), fluidization nozzles, max/min level indicators, and a screw conveyor system for discharge.

How does the fluidization system work?expand_more

Compressed air nozzles along the bottom cone inject air to fluidize the powder, breaking bridges and ratholes to ensure smooth gravity flow to the discharge system.
